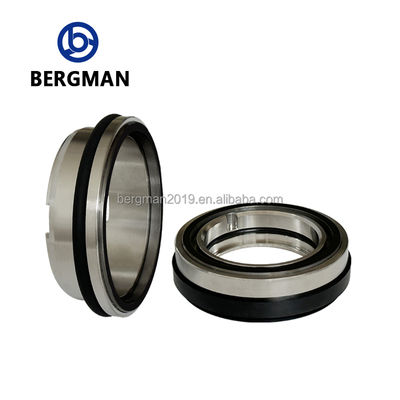

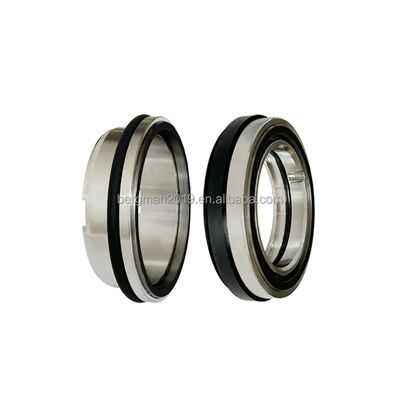

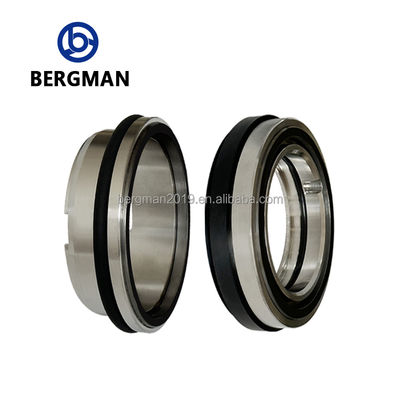

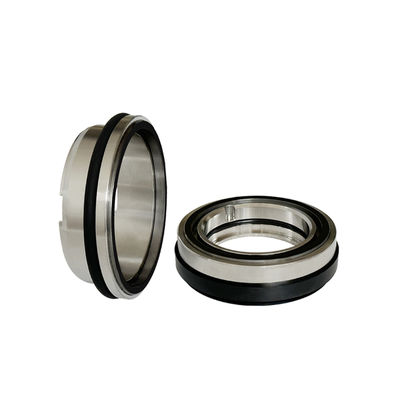

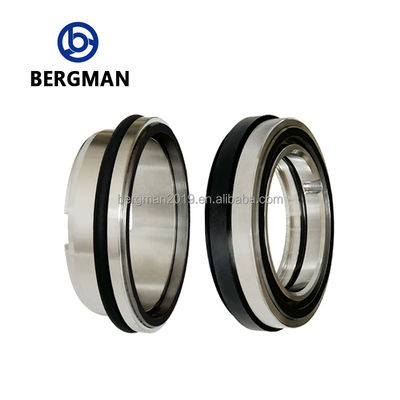

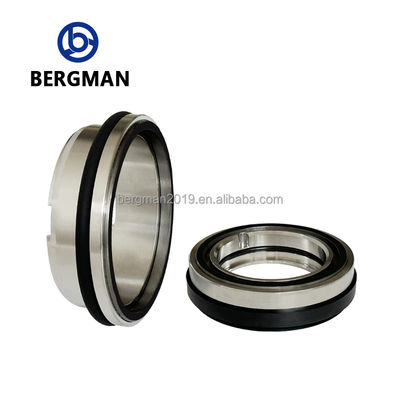

ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357

  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357
  • ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357
Lugar de origem Guangzhou, China
Marca BERGMAN, BERGMAN
Número do modelo FSL-80mm
Quantidade de ordem mínima 1
Preço $120-300

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tamanho 80mm Material de face Carboneto de tungstênio tc
Material do assento Carboneto de tungstênio tc Material elastomérico VITON FPM
Peças de metal SS316 Hastelloy C AM350 Pressão máxima ≤ 1,5MPa
Velocidade da linha ≤ 15m/s Faixa de temperatura -20 ° C-180 ° C.
Modelo FS-S-L80mm Código HTS 8484.20.00
SEAL secundário VITON FPM Padrões de conformidade DIN24960, ISO3069, EN12576, API682
Opções de material Carboneto de tungstênio, carboneto de silício, grafite de carbono, alumina Material de anel de o Depende do material do anel de O
Compatibilidade da bomba Modelos de bomba Flygt 1335.181, 2024, 2056, etc.
Destacar

ISO9001-2015 Certified Flygt Pump Mechanical Seal

,

TC Face Flygt Pump Mechanical Seal

,

TC Seat Flygt Pump Mechanical Seal
Deixe um recado
Descrição de produto
Replace Flygt FSL-80mm 3230 3300 3305 3306 3355 3356 3357 Pump Mechanical Seal Lower Seal
Product Description
Operating conditions and basic details for Guangzhou Bergman Mechanical Seals Co., Ltd.
Name Mechanical Seal Size 20mm
Brand BERGMAN Model FS-S-L80mm
Pressure ≤ 1.5mpa Temperature -20°C-180°C (Depends on O-ring material)
Face Material Tungsten carbide TC Seat Material Tungsten carbide TC
Secondary Seal VITON FPM Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Applications
  • Compatible with Flygt pump models: 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400, 3501, 3530
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective alternatives
  • 2,000+ square meter warehouse with large inventory for fast delivery
  • Can replace Burgman, John Crane, AES and other world-renowned brand seals
  • Supports OEM and customized services
Our Advantages
We offer wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings.
ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357 0 ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357 1
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, we became Guangzhou Bogman Mechanical Seals Co., Ltd. in 2019 and Guangdong Bogman Seals Co., Ltd. in 2023. We are ISO9001:2015 certified and specialize in various mechanical seals including pump seals, fluid seals, metal bellows seals, and more. Our materials include cemented carbide, silicon carbide, carbon graphite, and alumina.
ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357 2
Exhibition and Warehouse
We maintain over 2,000 square meters of spot warehouse with more than a thousand product varieties available for immediate shipment.
ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357 3
Production Workshop
Our modern facility features advanced machine tools, dust-free workshops, inspection equipment, and assembly line operations.
ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357 4 ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357 5
Application Range
Our seals are widely used in pipeline pumps, centrifugal pumps, sewage pumps, and chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.
ISO9001-2015 Certified Flygt Pump Mechanical Seal with TC Face and TC Seat for Models 3230 3300 3305 3306 3355 3356 3357 6
FAQ
  • Q: Are you a factory or trader? A: We are a production factory with our own international trade department.
  • Q: Where is your factory located? A: Located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
  • Q: What is your delivery time? A: Stock items ship immediately; custom items take 10-25 days depending on quantity.
  • Q: Do you provide free samples? A: Sample costs can be refunded after order placement.
  • Q: What are your payment terms? A: 100% prepayment for stock items; 30% deposit for custom orders with 70% before shipping.
