90mm Flygt Pump Mechanical Seal Upper Seal ISO9001-2015 Certified for Flygt Pumps 3230 3300 3310 3350 3400
Contacte-me para amostras grátis e vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Tamanho | 90mm | Material de face | Carboneto de tungstênio tc |
|---|---|---|---|
| Material do assento | Carboneto de tungstênio tc | Material elastomérico | VITON FPM |
| Peças de metal | SS316 Hastelloy C AM350 | Pressão máxima | ≤ 1,5MPa |
| Velocidade máxima da linha | ≤ 15m/s | Faixa de temperatura | -20 ° C-180 ° C. |
| Modelo | FS-S-U90mm | Código HTS | 8484.20.00 |
| Padrões de conformidade | DIN24960, ISO3069, EN12576, API682 | Quantidade por conjunto | 1set |
| SEAL secundário | VITON FPM | Materiais resistentes ao desgaste | Carboneto de tungstênio, carboneto de silício, grafite de carbono, alumina |
| Vedações de borracha | Vedações de PTFE, O-rings | ||
| Destacar | 90mm Flygt Pump Mechanical Seal,ISO9001-2015 Certified Mechanical Seal,Flygt Pump Upper Seal |
||
Descrição de produto
Replace Flygt FSU-90mm 3230 3300 3310 3350 3400 Pump Mechanical Seal Upper Seal
Product Overview
High-performance mechanical seal designed for Flygt pumps, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Name | Mechanical Seal | Size | Standard size (20mm-90mm) |
| Brand | BERGMAN | Model | FS-S-U90mm |
| Pressure | ≤ 1.5mpa | Line speed | ≤ 15m/s |
| Temperature | -20°C-180°C (Depends on O-ring material) | Application | Flygt pump |
| Face material | Tungsten carbide TC | Seat material | Tungsten carbide TC |
| Secondary seal | VITON FPM | Metal parts | SS316 Hastelloy C AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization service |
Compatible Flygt Pump Models
1335.181, 2024, 2056, 2102.220, 2050-2151, 2201-2400, 2610-2740, 3041-3171, 3200-3530 (Full range of Flygt pump mechanical seals available)
Key Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Direct replacement for original equipment seals
- Available in various price points to meet different budget requirements
- 2000+ square meter warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other major brand seals
- OEM and customized services available
Material Advantages
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, with rubber seals, PTFE seals, and O-rings.

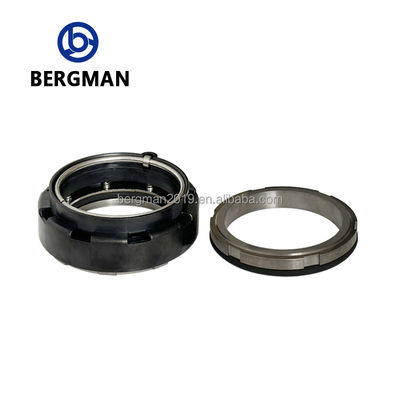

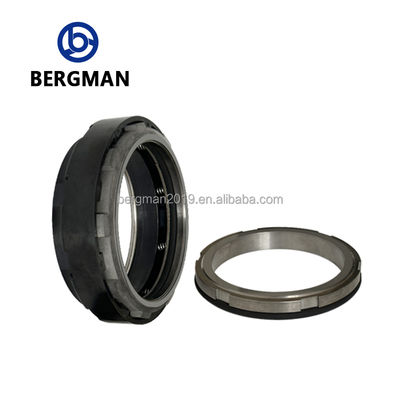

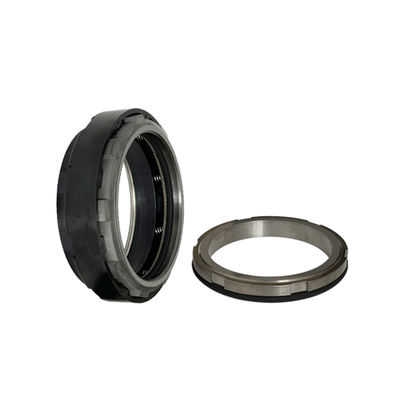

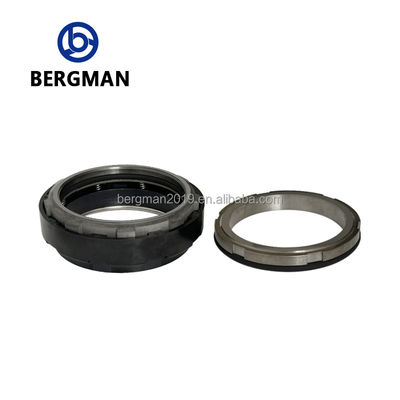

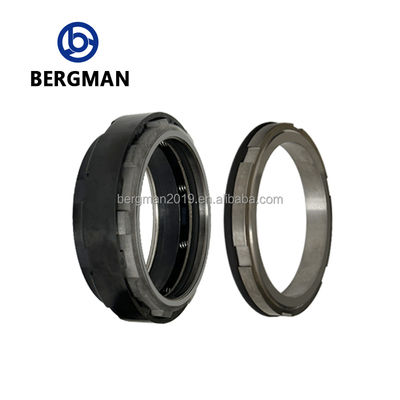

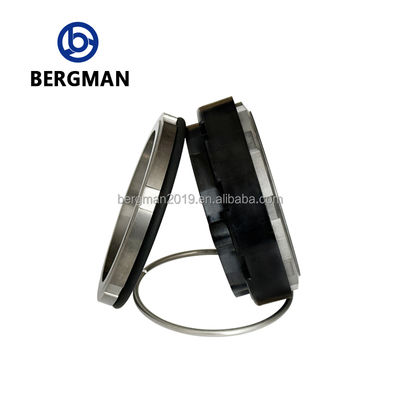

Product Images
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (established 2019) with over 20 years of experience in mechanical seal manufacturing. Certified to ISO9001:2015 standards with 2000+ square meter warehouse for fast delivery.
Specializes in pump mechanical seals, fluid mechanical seals, metal bellows seals, and various sealing materials including cemented carbide, silicon carbide, and carbon graphite.
Production Capabilities
- Modern advanced machine tool equipment
- Dust-free workshop environment
- Professional inspection equipment
- Assembly line production
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.
FAQ
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: What is your delivery time?
A: Stock items ship immediately. Custom items require 10-25 days production time.
Contact Information
International Trade:
Li Wei: +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
