ISO9001-2015 Certified Flygt Pump Seal with TC Face and TC Seat for Flygt Pumps 45mm
Contacte-me para amostras grátis e vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Tamanho | 45 mm | Material de face | Carboneto de tungstênio tc |
|---|---|---|---|
| Material do assento | Carboneto de tungstênio tc | Material elastomérico | VITON FPM |
| Peças de metal | SS316 Hastelloy C AM350 | Pressão máxima | ≤ 1,5MPa |
| Temperatura máxima | -20 ° C-180 ° C. | Velocidade máxima da linha | ≤ 15m/s |
| Modelo | FGL-FS | Código HTS | 8484.20.00 |
| Modelos compatíveis | 2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171 | Conformidade com padrões | DIN24960, ISO3069, EN12576, API682 |
| SEAL secundário | VITON FPM | Temperatura operacional | -20 ° C a 180 ° C. |
| Pressão máxima | 1,5 MPa | ||
| Destacar | ISO9001-2015 Certified Flygt Pump Seal,TC Face Flygt Pump Seal,TC Seat Flygt Pump Seal |
||
Descrição de produto

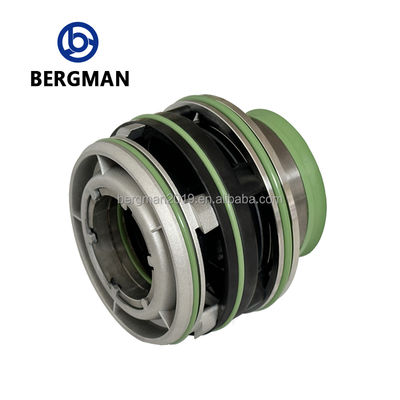

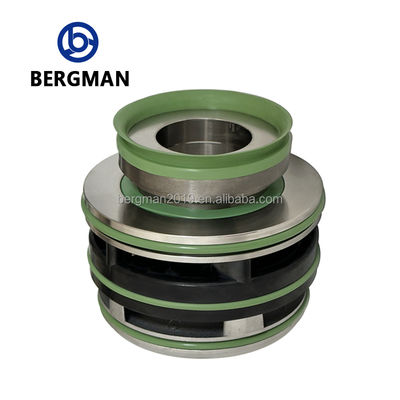

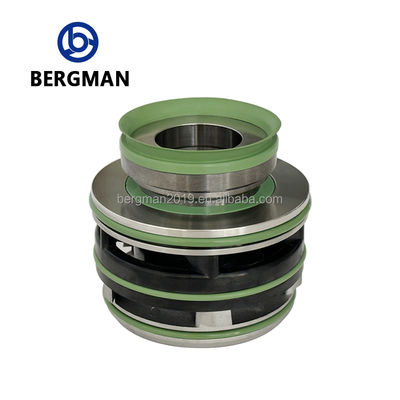

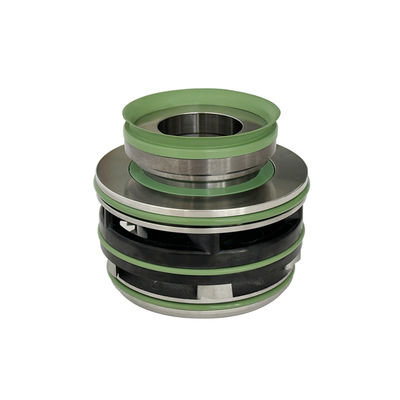

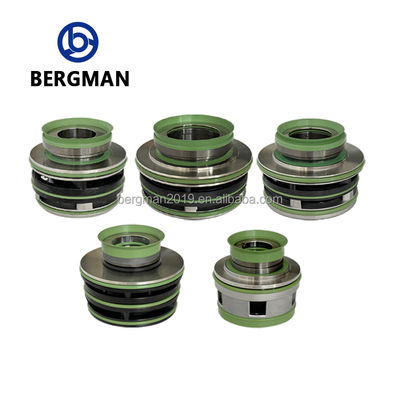

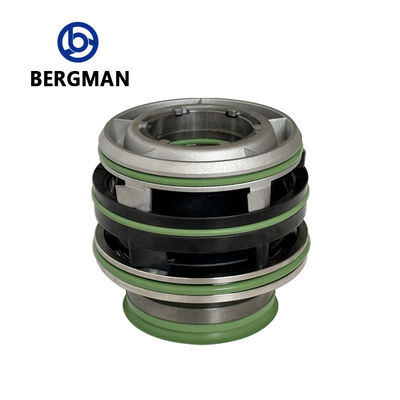

Flygt Pump Seal FS-45mm 3171 7020 3152 Barrel Plug-in Pump Mechanical Seal
Product Overview
High-quality replacement mechanical seal for Flygt pumps, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.
Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Name | Mechanical Seal | Country of Origin | Guangzhou, China |
| Size | Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 90mm) | Brand | BERGMAN |
| Model | FGL-FS | MOQ | 1 set |
| Pressure | ≤ 1.5MPa | Line Speed | ≤ 15m/s |
| Temperature | -20°C to 180°C (depends on O-ring material) | Application | Flygt pump |
| Face Material | Tungsten Carbide (TC) | Seat Material | Tungsten Carbide (TC) |
| Secondary Seal | VITON FPM | Metal Parts | SS316, Hastelloy C, AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization service |
Compatible Flygt Pump Models
2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660, 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680, 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360.
Key Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Direct replacement for original equipment manufacturer seals
- Available in various price points to meet different budget requirements
- 2,000+ square meter warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other major brand seals
- OEM and customization services available
- Factory-direct pricing with high quality standards
Materials
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, O-rings.
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, Guangzhou Bogman Mechanical Seals Co., Ltd. was established in 2019, and Guangdong Bogman Seals Co., Ltd. was established in 2023. The company has passed the quality management system GB/T19001-2016 idt ISO9001:2015 certification.
We specialize in world-renowned pump mechanical seals, axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, rubber bellows mechanical seals, O-ring seals, PTFE mechanical seals, stainless steel oil seals, skeleton oil seals, hydraulic oil seals, automotive water seals and various mechanical sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina.
Facilities
- 2,000+ square meter warehouse with large inventory
- Modern advanced machine tool equipment
- Dust-free workshop with inspection equipment
- Assembly line operation
- Annual participation in Guangzhou Spring Import and Export Fair
Applications
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation industries.
Packaging & Shipping
Various packaging options available with customized packaging for large orders. Small size and weight make air, sea, and express shipping ideal.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port. Other ports can be selected based on customer needs.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days production time depending on order quantity.
Q: Do you provide free samples?
A: Samples are not typically free, but sample costs can be refunded after order placement.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, BABY, Western Union, and Alibaba payment.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom product requests.
Contact Us
International Trade:
Li Wei: Mobile +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
